ZY-R

Coil-fed Laser Cutting System / Automatic Coil Laser Cutting Line

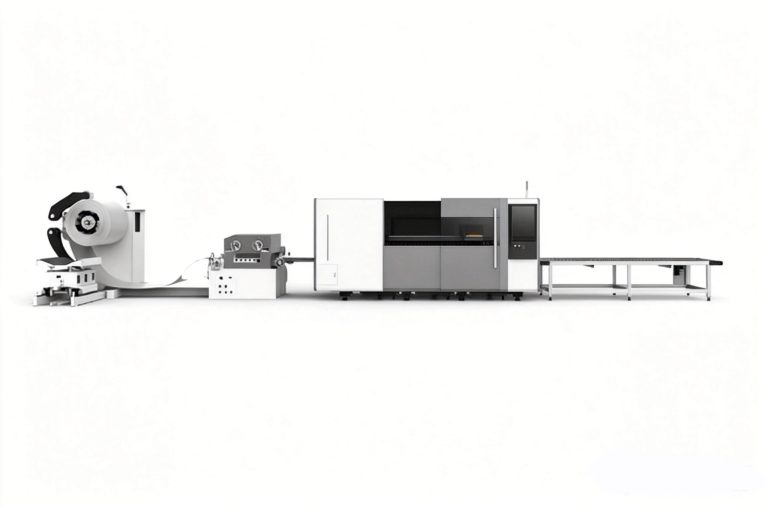

zy r 1

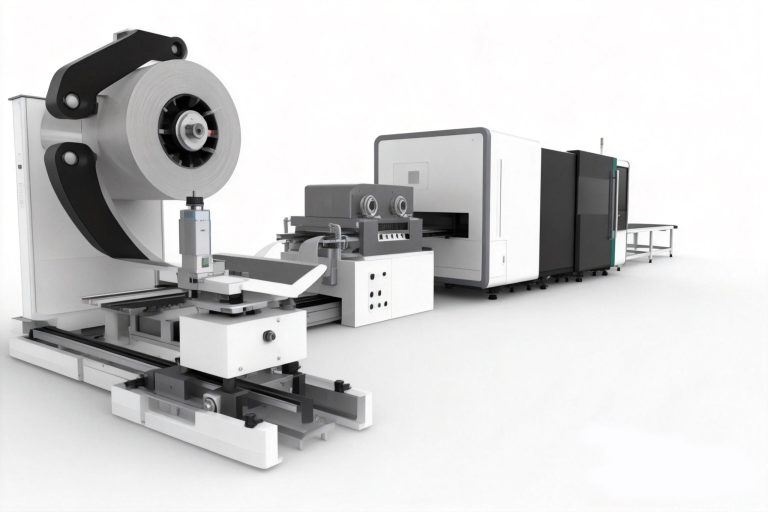

zy r 2
zy r 3

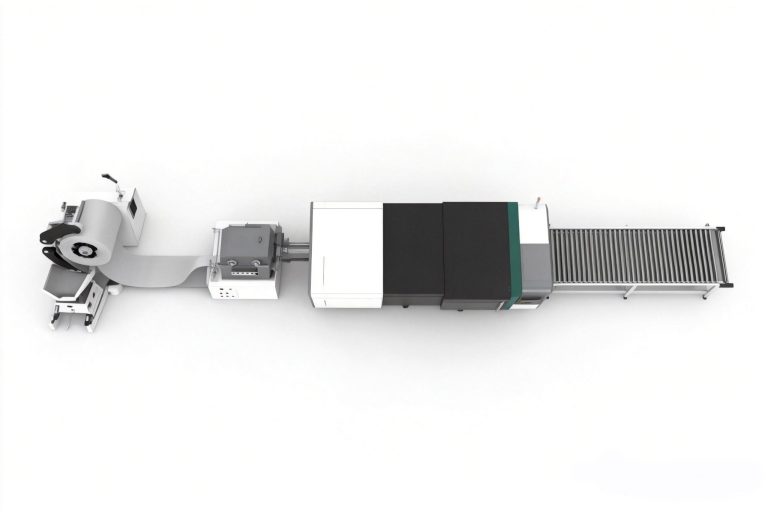

zy r 4

Technical Parameters

modelZY-R3015ZY-R4015ZY-R6015
Working area3050×1530mm4050×1530mm6050×1530mm
Power1000w/2000w/3000w/4000ww
Positioning Accuracy±0.03mm
Repeated Positioning Accuracy±0.02mm
Max.Moving Speed80m/min

End-to-End Automation – True “Lights-Out” Production

Integrated workflow:
Uncoiler → Leveler → Servo Feeder → Fiber Laser → Conveyor → Stacker
→ No operator needed between coil loading and finished part stacking.
✅ Ideal for high-volume parts: brackets, vents, panels, perforated sheets.

Massive Material Savings – Cut Directly from Coil

  • Eliminates sheet cutting gaps and edge waste from standard plates
  • Nesting software optimizes layout across the entire coil length
  • Saves 15–30% on raw material vs traditional sheet-based cuttin

Smart Features for Industrial 4.0

  • Auto coil splice detection – pauses before joint, resumes after
  • Real-time nesting – adjusts layout based on actual coil width
  • Barcode tracking – each part tagged with batch/coil ID
  • MES/ERP integration – OEE, downtime, yield reporting

Compact & Flexible Layout

  • Modular design: fits in 15m × 4m workshop space
  • Optional add-ons:
    • Oil-free feeding (for painted/pre-coated coils)
    • Part sorting robot
    • Scrap baler
  • Supports coil widths: 500–1600 mm
  • Max coil weight: 5–10 tons
