ZY-TA

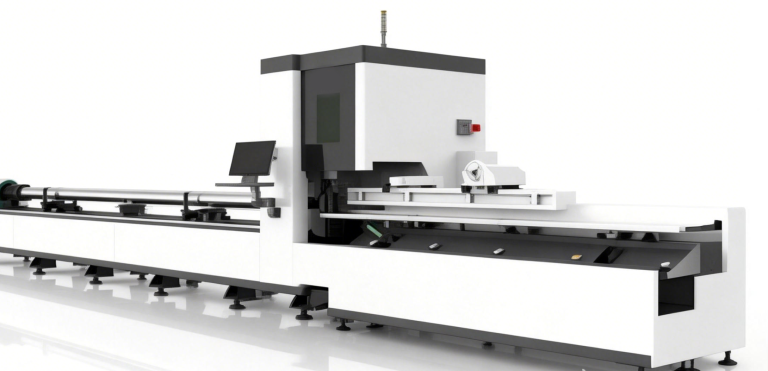

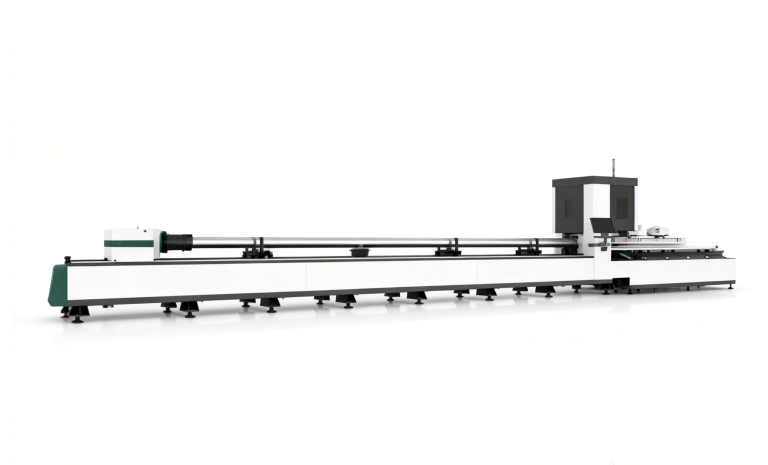

High Precision Tube Fiber Laser Cutting Machine
Technical Parameters
| model | ZY-PH6025 | ZY-PH8025 | |||
|---|---|---|---|---|---|
| Effective Square Round Cutting Diameter | Φ15-Φ225mm | Φ15-Φ350mm | |||
| Effective Square Tube Cutting Diameter | □15-□225mm | □15-□350mm | |||
| Power | 1000w/1500w/2000w/3000w/4000w/6000w | ||||
| Effective Tube Cutting Length | 6000mm | ||||
| Positioning Accuracy | ±0.05mm | ||||
| Repeated Positioning Accuracy | ±0.01mm | ||||
| Max.Moving Speed | 100m/min | ||||
±0.05mm Cutting Precision – Tightest Tolerance in Class
- High-rigidity cast iron bed + direct-drive rotary system
- Real-time focus tracking adapts to tube curvature
- Ideal for:
- Hydraulic fittings
- Medical device frames
- Aerospace brackets
- High-end bicycle frames
✅ No burr, no deformation, no post-processing
Smart Features That Save Time & Material
- Auto tube loading/unloading (optional)
- Laser vision centering – detects actual tube position, compensates for bending
- Nesting software optimizes cut path to minimize scrap
- Collision detection protects expensive chucks and optics
💡 Reduces material waste by 12–20% vs traditional saw + machining
Plug-and-Play Operation – No CAD/CAM Expert Needed
- Import DXF, STEP, or IGES directly
- Built-in tube library + parametric hole templates (circle, slot, hex, etc.)
- One-click bevel angle setting (0°–45°)
- Remote training included
