ZY-TL

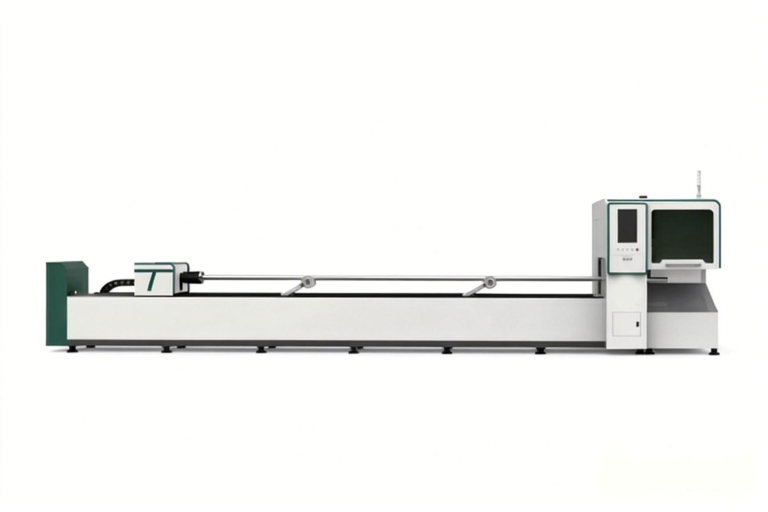

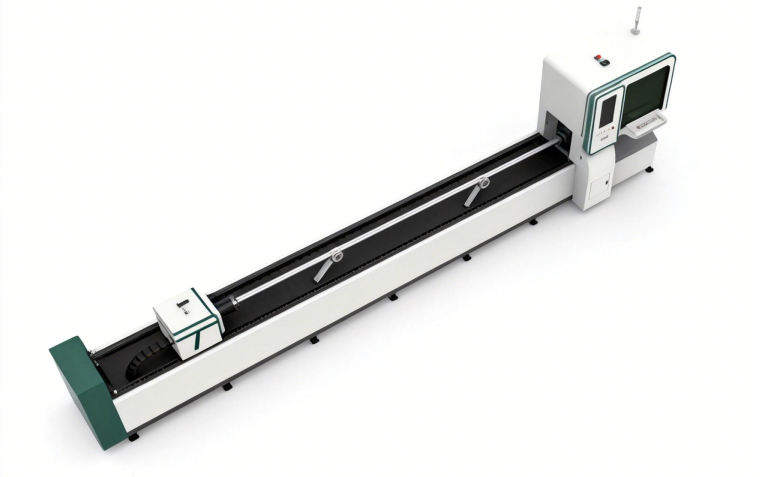

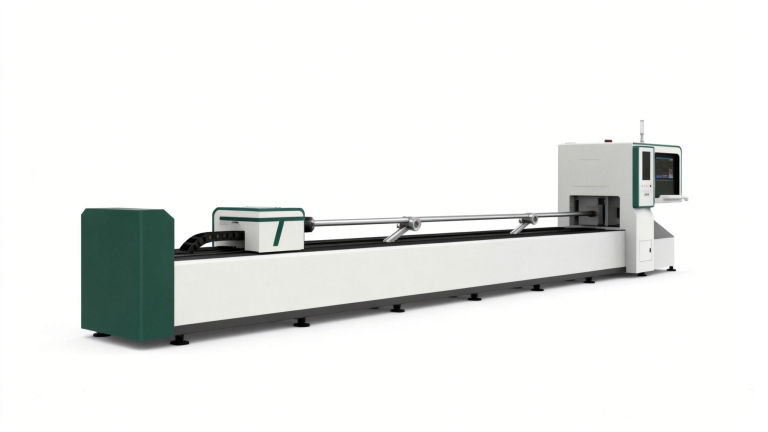

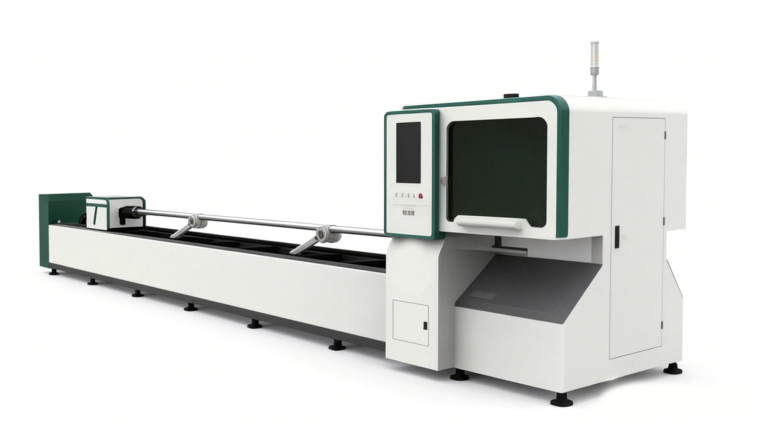

Economical Laser Tube Cutting Machine
Technical Parameters
| model | ZY-PH6025 | ZY-PH8025 | |||
|---|---|---|---|---|---|
| Effective Square Round Cutting Diameter | Φ16-Φ165mm | Φ10-Φ225mm | |||
| Effective Square Tube Cutting Diameter | □16-□165mm | □10-□225mm | |||
| Power | 1000w/1500w/2000w/3000w | ||||
| Effective Tube Cutting Length | 6000mm | ||||
| Positioning Accuracy | ±0.05mm | ||||
| Repeated Positioning Accuracy | ±0.01mm | ||||
| Max.Moving Speed | 80m/min | ||||
Lowest Entry Price in Class
- Full-featured tube laser at 40–60% the cost of premium brands
- No hidden fees: includes chucks, software, training
- Ideal for:
- Small metal fabrication shops
- Furniture & gym equipment startups
Simple Operation – Train Your Worker in 1 Day
- Intuitive touchscreen interface (EN/ES/PT/AR)
- Pre-loaded templates: holes, notches, end cuts
- Import DXF files directly – no CAM expertise needed
- Remote setup support via WhatsApp or Zoom
✅ No laser engineer required – your current operator can run it.
Reliable Performance for Daily Production
- 1000W / 1500W fiber laser – optimized for 1–6mm tubes
- Hardened steel bed + stable rotary chuck
- Cutting accuracy: ±0.1 mm – sufficient for welding & assembly
- Built-in dust extraction port (connect to your existing system)
