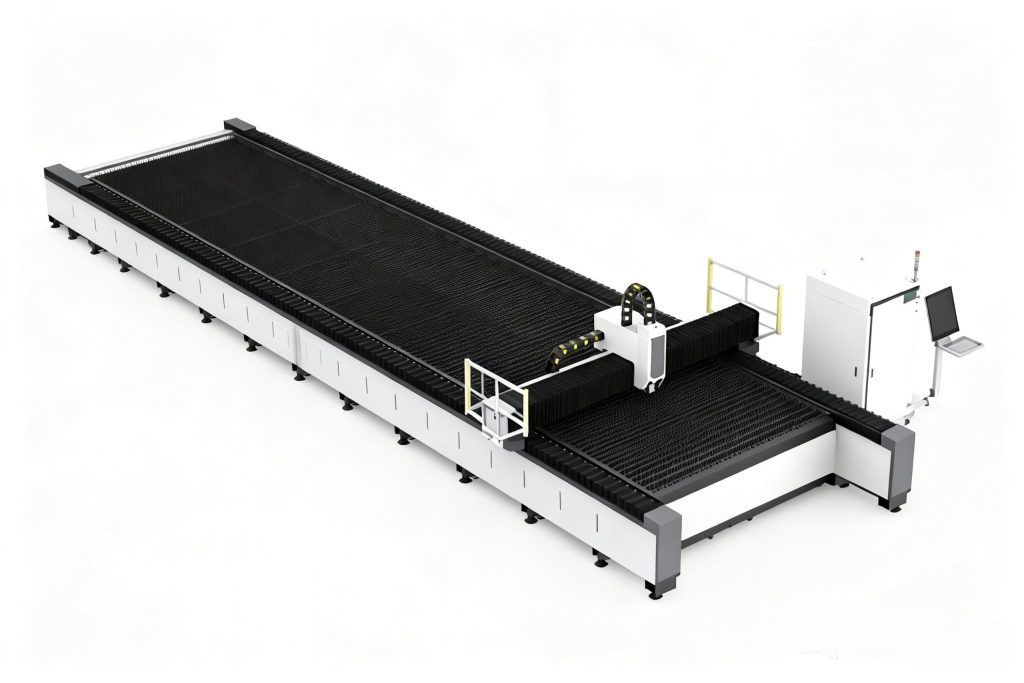

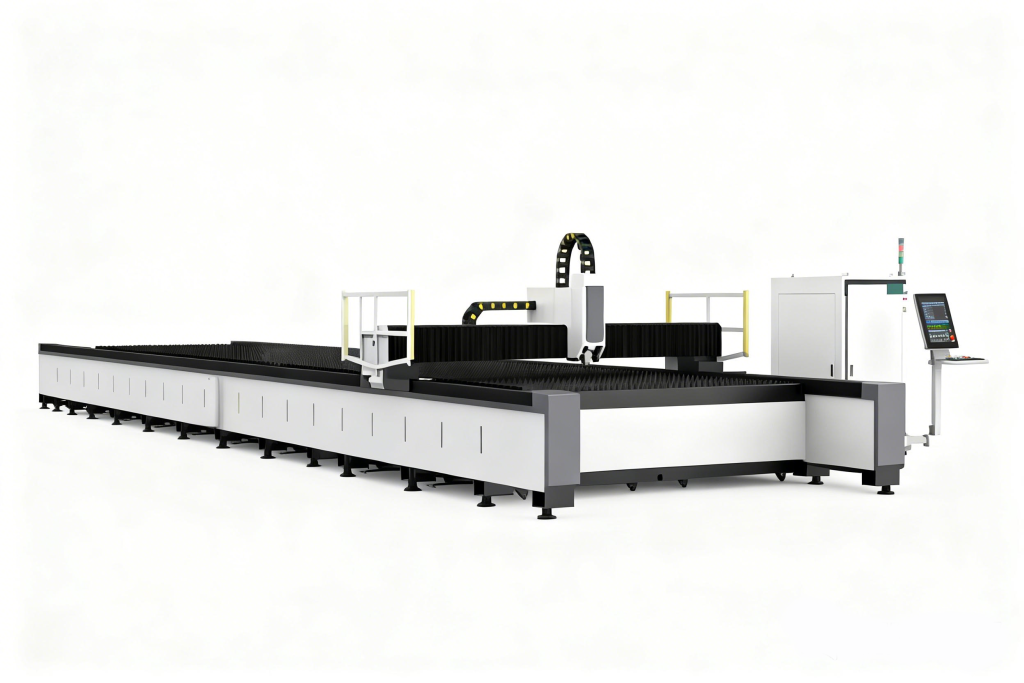

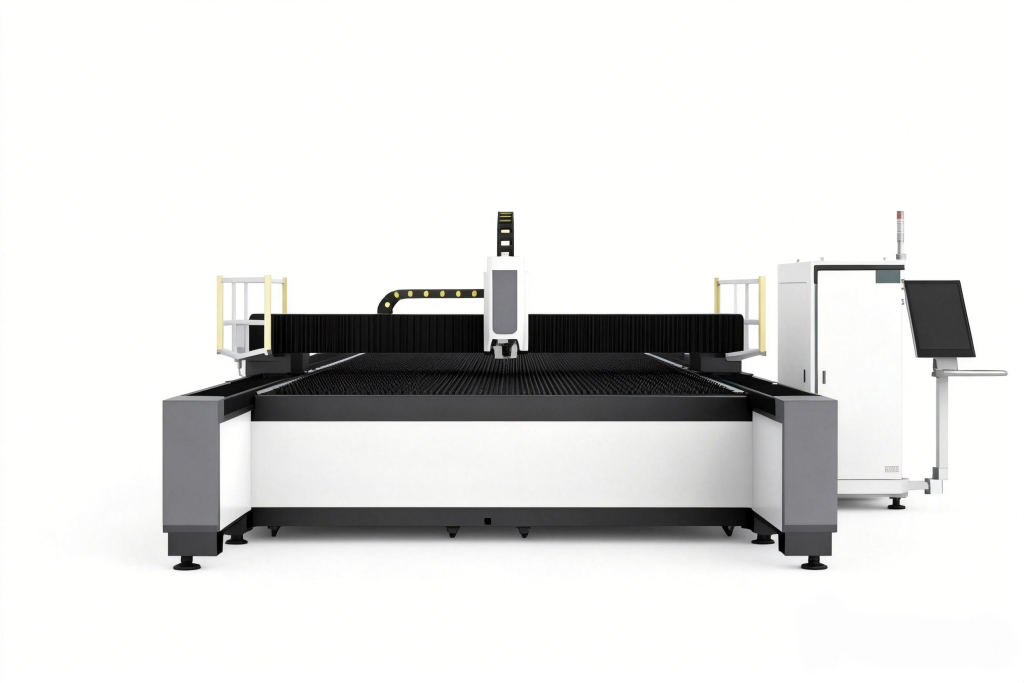

ZY-G
Super large-Format Metal Sheet Laser Cutting Machine
Cut 4m × 20m Steel Plates in One Pass — No Welding. No Re-Alignment. Just Precision at Scale.
| model | ZY-G10325 | ||||
|---|---|---|---|---|---|
| Working area | 13100x2550mm | ||||
| Power | 6000w/8000w/10000w/15000w/20000w | ||||
| Positioning Accuracy | ±0.1mm | ||||
| Repeated Positioning Accuracy | ±0.05mm | ||||
| Max.Moving Speed | 80m/min | ||||
Ultra-Large Cutting Area
Process full-size metal sheets without segmentation. Ideal for ship hull plates, wind tower sections, crane booms, and bridge components — cut them in one single setup to eliminate cumulative errors.
High-Power Fiber Laser – 6kW to 20kW Options
- Cut 40mm carbon steel or 30mm stainless steel in one pass
- 2–3× faster than CO₂ lasers
- 40%+ electro-optical efficiency = lower operating cost
“20kW power delivers 1.2 m/min on 30mm mild steel — unmatched productivity for heavy industry.”
Industrial-Grade Rigidity & Precision
- Stress-relieved welded bed frame (annealed for stability)
- Dual servo motors + precision helical rack & pinion drive
- Full closed-loop control with linear encoders
- Positioning accuracy: ±0.05 mm/m — maintained even over 20-meter travel
Dual Shuttle Worktables – Zero Downtime
- Load/unload on one table while cutting on the other
- Table load capacity: up to 12 tons
- Integrated sheet positioning & scrap separation
→ Boost machine utilization by 40%+
